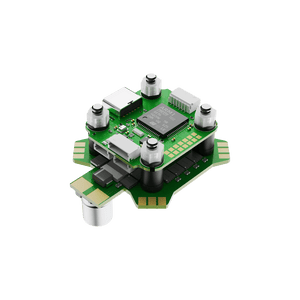

BLITZ Mini F7 V1.2 Flight Controller

SKU

  • Flash Sale

0
0
0
0
Days
0
0
Hrs
0
0
Min
0
0
Sec

About

Description

Our latest BLITZ Mini Flight Controller used in our iFlight BNFs. Ultra fast F7 MCU for 2-6S batteries. 20×20 mounting pattern. The perfect match for your new frame. Improved circuit design, better components and lower electrical noise! DJI HD VTX Connector (Plug-and-Play / No soldering required), FC indicator LEDs for visual debugging, with LC filter.

Specifications:
MCU: STM32 F722
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456
Flash: 8MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA/SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm
Weight: 5g

Wiring Suggestions:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

Wiring Diagram:
https://drive.google.com/drive/u/1/folders/17Uf67I6ER_z-otviR0I7tSqO31W7S553

Packing List:
1 x BLITZ Mini F7 V1.2 Flight Controller
1 x FC connectors
1 x Silicon grommets

Description

Our latest BLITZ Mini Flight Controller used in our iFlight BNFs. Ultra fast F7 MCU for 2-6S batteries. 20×20 mounting pattern. The perfect match for your new frame. Improved circuit design, better components and lower electrical noise! DJI HD VTX Connector (Plug-and-Play / No soldering required), FC indicator LEDs for visual debugging, with LC filter.

Specifications:
MCU: STM32 F722
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456
Flash: 8MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA/SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5×27 mm
Weight: 5g

Wiring Suggestions:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

Wiring Diagram:
https://drive.google.com/drive/u/1/folders/17Uf67I6ER_z-otviR0I7tSqO31W7S553

Packing List:
1 x BLITZ Mini F7 V1.2 Flight Controller
1 x FC connectors
1 x Silicon grommets
