Nazgul Evoque F6 V2 O3 GPS
SKU
About
Description
Smooth and Powerful XING2 Motors
The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.
Latest Nazgul Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
DJI O3 HD Air Unit Low-Latency digital transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)
4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Specially Designed Heatsink for DJI O3 HD Air Unit
Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.
Specifications:
Product Name: Evoque F6 V2
FC: BLITZ Mini F722 Flight Controller

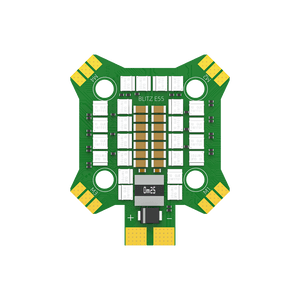

ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Frame wheelbase: 255mm (Squashed X) / 262 mm (DeadCat)
Motor: XING2 2506 1500KV motors
Prop: 6 inch propellers
Weight: 480/485 grams
Takeoff Weight: Approx. 680 g
Dimensions (L×W×H): 196×164×36±2mm (Squashed X) / 209×162×36±2mm (DeadCat)
Diagonal Distance: 120 mm
Max Speed: 180 Km/H (Manual Mode)
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 8 mins (With 1400mAh battery)
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 57
Operating Temperature Range：-10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Video Transmission:
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams（headband included）
Communication Bandwidth： Max 40 MHz
FOV (single screen): 155°
Communication Frequency：2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A
Packing List:
1 x Evoque F6 6S HD BNF
2 x Antennas
1 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
Notice:
All iFlight BNFs are tested before shipment to guarantee highest quality.If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
Characteristics
Size
6 inch
Geometry
Squashed X or DeadCat
Flight Stack
BLITZ Mini F7/E55
Motors
2506 1500KV
Video Transmitter
DJI O3 Air Unit
Radio Transmitter
DJI FPV RC2, ELRS, TBS (optional)
GPS Module
M10 chipset
Max. Speed
180 km/h
Weight
ca. 480 (without battery)
