Orange Pi 5 4GB
SKU
20% Off
В Orange Pi 5 используется 8-ядерный 64-разрядный процессор нового поколения Rockchip RK3588S, четырехъядерный процессор A76 + четырехъядерный процессор A55, с 8-нм технологическим процессом, основной частотой до 2,4 ГГц, интегрированным графическим процессором ARM Mali-G610, встроенным высокопроизводительным модулем ускорения 3D/2D изображений, встроенным NPU благодаря вычислительной мощности 6Tops, 4 ГБ/8 ГБ/16 ГБ (LPDDR4/4X) и возможности обработки изображений разрешением до 8 КБ.
Orange Pi 5 предоставляет множество интерфейсов, включая выход HDMI, интерфейс GPIO, M.2 PCIe2.0, Type-C, гигабитный порт LAN, 2 * USB2.0, 1 * USB3.0 и т.д.; Он может широко использоваться в планшетах, периферийных вычислениях, искусственном интеллекте, облачных вычислениях, AR/VR, интеллектуальная безопасность, умный дом и другие области, охватывающие различные отрасли AIoT.
Orange Pi 5 поддерживает Orange Pious (Droid), официальную операционную систему, разработанную Orange Pi, а также Android 12 и Debian11.
Описание
Orange Pi 5 uses Rockchip RK3588S new generation 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with 4GB/8GB/16GB (LPDDR4/4X), and up to 8K display processing capability.
Orange Pi 5 provides abundant interfaces, including HDMI output, GPIO interface, M.2 PCIe2.0, Type-C, Gigabit LAN port, 2*USB2.0, 1*USB3.0, etc.; It can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Orange Pi 5 supports Orange Pi OS（Droid）, the official operating system developed by Orange Pi, as well as Android12 and Debian11.
Feature
Rockchip RK3588S
A new generation AIoT chip
Using 8nm LP process, it is faster and consumes less power, bringing superior performance to various AI application scenarios.
CPU8-core 64 core architecture, 4*Cortex-A76 + 4*Cortex-A55
4X
Improvement
RK3588S
RK3399
GPUARM Mali-G610
8X
Improvement
RK3588S
RK3399
NPU6Tops AI computing power
Support INT4/INT8/INT16 hybrid computing, empowering various AI scenarios
4GB/8GB/16GB, more memory options to meet different needs
1
4GB
2
8GB
3
16GB
8K video codec for clearer images
Up to support 8K @ 60fps, the powerful video codec allows for clearer images and more detailed picture quality.
Gigabit Ethernet
On-board 1000Mbps Ethernet for stronger and more stable network connection and higher transmission speed.
Rich interfaces, easy to expand
Gathering all kinds of popular interfaces such as MIPI D-PHY, MIPI CSI, USB3.0, USB2.0, Type-C, HDMI2.1, M.2 PCIe2.0, Gigabit Ethernet, etc.
Multi-channel input and output
Support HDMI 2.1 8K video output, USB-C (DP1.4), dual MIPI D-PHY video output for multi-screen display, support three MIPI interface camera inputs.
Supports NVMe SSD hard drives for massive capacity expansion
The onboard M.2 PCIe 2.0 interface supports access to NVMe SSD hard drives to increase massive data storage space and meet the demand for fast read/write and large-capacity storage.
Supports Orange Pi OS（Droid）
With its self-designed Launcher, it provides users with the same operating habits as a regular computer to the maximum extent. The installation of Google Store allows users to run Facebook, Instagram, Twitter, YouTube, Telegram and other applications smoothly.
Wide range of application scenarios
It can be widely applied to tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Cloud computing
AR/VR
Intelligent security
Smart home and other fields
Artificial intelligence
Tablets
Edge computing
Cloud computing
AR/VR
Intelligent security
Smart home and other fields
Artificial intelligence
Tablets
Edge computing
Cloud computing
Hardware Specification
SoC
Rockchip RK3588S (8nm LP process)
CPU
• 8-core 64-bit processor
• Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU
• Arm Mali-G610 MP4 “Odin” GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
• 3D graphics engine and 2D graphics engine
NPU
Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU
RK806-1
RAM
4GB/8GB/16GB（LPDDR4/4X）
Memory
• QSPI Nor FLASH 16MB
• MicroSD (TF) Card Slot
• M.2 M-KEY Socket
USB
USB3.0 × 1
USB2.0 × 2
Type-C (USB3.1) ×1
Video Output
• HDMI2.1, up to 8K @60Hz
• DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
• 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera
• MIPI CSI 4Lane
• 2 * MIPI D-PHY RX 4Lane
Audio
CODEC: ES8388
• 3.5mm headphone jack audio input/output
• Input: Onboard MIC
• HDMI 2.1 eARC
Ethernet
10/100/1000Mbps Ethernet
Expansion Port
For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot
Support PCIe NVMe SSD
Support custom PCIe Wi-Fi6+BT5.0 module
Button
1×MaskROM key
1×Recovery key
1×On/Off key
Power Source
Support Type-C power supply, 5V @ 4A
LED
Power indicator: red
Status indicator: green
FAN
5V FAN
Debugging
3 Pin debug serial port (UART)
Supported OS
Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu、Debian、Android12
Appearance specification introduction
Dimension
62mm*100mm
Weight
46g
Product display
Front
Back

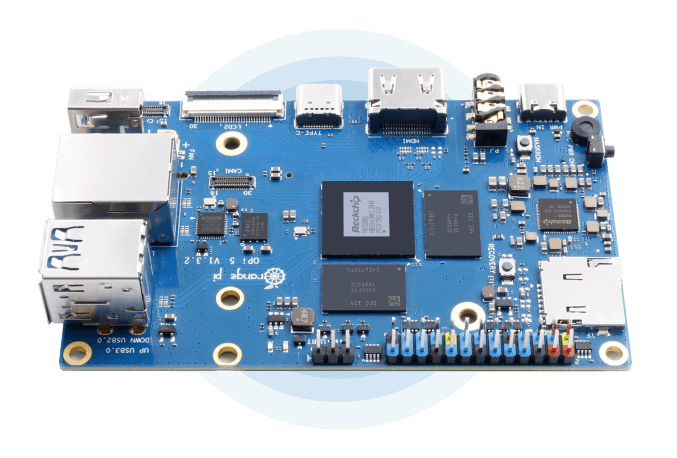

45° angle
